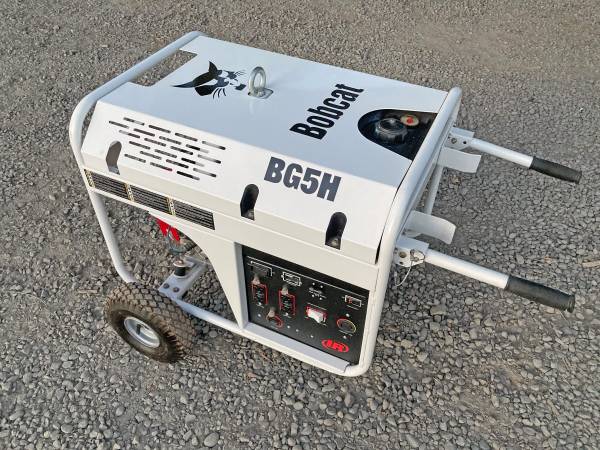

Honda Bobcat IR Generator: 9-Hours, 9-HP GX270, 4800 Watts, Like New (Jacksonville)
QR Code Link to This Post
Reach out if you have $1200 cash for it. That's over 1/2 off the price of a new one. Barterers: Possible trade for your ride on mower, wire feed mig welder, or a horse trailer.
Local delivery available. Pick up in Jacksonville, Oregon. We can load it for you.
Original paperwork included:
-----------------------
• Operation & Maintenance & Parts Manual.
• Alternator manual.
• Motor manual.
Engine info:
-----------------------
• Manufacturer: Honda.
• Model: GX270.
• HP: 9.
• Fuel: Gasoline.
• Starter: recoil.
• Sealed battery and cables: N/A.
• Oil (1.6 qt): API SJ SAE 10W-30. Note regarding oil level check: The dipstick should be placed into the filler opening but not screwed in to check the level.
Alternator info:
-----------------------
• Manufacturer: Mecc-Alte.
• Model: E1-130.
• Voltage: 120/240.
• kVA rating: 4.9.
• Surge power (kW): 4.8.
• Nominal rated power (kW): 4.25.
• Surge amps: 41.6 (120v).
• Nominal rated amps: 35.4 (120v).
• Code H motor starting power (HP): 1.
• Winding material: copper.
• Overload protection: Std.
• Number of poles: 2.
Receptacle outputs (NEMA type):
-----------------------
• 120V-20A GFCI Duplex (5-20R): 2.
• 120V/30A Twist (L5-30R): 1.
• 120V/240V/20A Twist (L14-30R): 1.
Size/Capacities:
-----------------------
• Length (in): 29.5.
• Width (in): 22.25.
• Height (in): 22.4.
• Dry Weight (lb): 170.
• Fuel tank (gal): 8.
• Runtime at 3/4 load (hours): 16.
• Noise level at full load for 7 minutes (dBA): 78.
• Voltage regulation no load and full load: +7/-10%.
• Total harmonic distortion no load: 6% or less.
• Frequency regulation no load-full load: +/- 3.5%.
Standard features:
-----------------------
• Hourmeter.
• Low oil level protection.
• Auto idle control.
• Spark arrester.
• Metered fuel tank w/ vented cap.
• Main CB rating: 20.
• CB, each receptacle.
• Voltage selector switch.
• Focal engine isolator mounts.
• Focal alternator isolator mounts.
• Voltage regulator type: capacitor.
• Pneumatic 2-wheel transport kit.
• Lifting kit.
